Lithium polymer battery
Lithium polymer battery(also called polymer lithium ion battery,or lipo battery,li-polymer, PLB), is a lithium ion battery that uses solid electrolyte while another one is using liquid electrolyte, whose name is Liquified lithium ion battery(Li ion,LIB). they have same anode and cathode materials, the anode material can be LiCoO2,LiMn2O4,NiCoMn, the cathode can be graphite. they also have same work way, the difference is just the electrolyte.







Advantages

1-High cell voltage, 3.7V is much higher than NiMn and Ni-Cd battery 1.2V.
2-Higher energy density, twice of Ni-Mh and Ni-Cd.
3-Low self discharge rate,about 1%.
4- Long cycle life, 500 times.
5- No memory effects, easy to use.
6-Great safety performance. With soft aluminum foil package instead of metal one, even in case of safety problem, lithium polymer battery can only swell instead of explode or fire.
7-Thin and thinner. it can be made to be ultra thin, so it can be embedded into credit cards, and other thin devices.
8-Light weight. With aluminum foil shell, it can have at least 25% less weight than same capacity liquid electrolyte lithium ion battery in aluminum case.
9-Higher capacity. Its has 5%~15% more capacity than aluminum lithium ion battery, more and more mobile phones are using lithium polymer battery.
10-Low interior impedance, lithium polymer battery cell has smaller impedance than liquid battery cell, now Padre polymer battery cell can have less than 35mΩ, it prolonged mobile phone work time by greatly reducing self discharge power, high rate type lithium polymer battery can support big current, it makes it best power solution for RC models, Padre high rate polymer battery now can reach 50C continuous discharge rate, and max 70C peak rate.
11-Customized shape. Padre can customize the battery with flexible thickness, length, width and shape according to various equipment particular requirements.
12-Good discharge performance. Lithium polymer battery uses solid electrolyte, this makes it have more stable discharge and higher platform than liquid lithium ion battery.

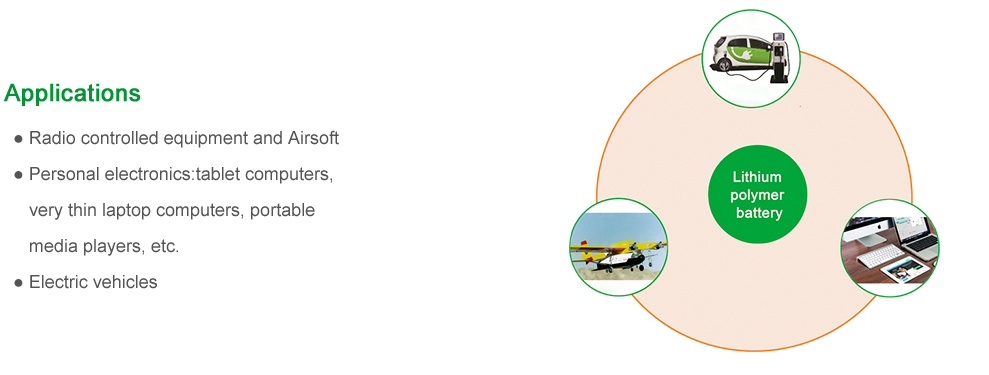

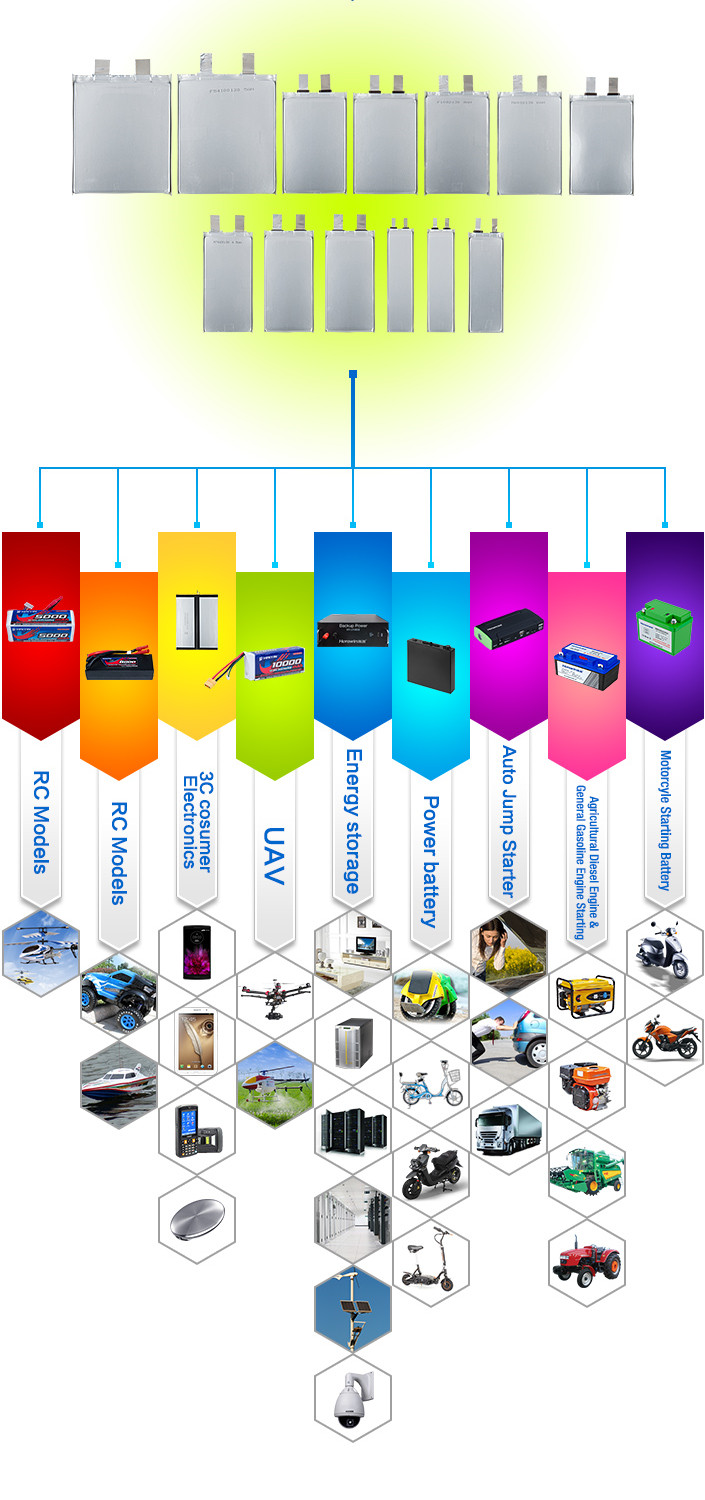

Applications

  • High C-rate series: For radio control models, auto jump starters and UAVs for aerial photography, etc.
  • Digital series: For 3C consumer electronics such as tablets, smart phones, wireless devices and power banks, etc.
  • Power serires: For electric bicycles, electric motorcycles, e-scooters, energy storage, Grid communication equipments and UPS, etc.

Lithium polymer battery Specification table

Model Capacity (mAh) Impendance(ｍΩ) voltage（V） size weight(g)
thickness（mm） width（mm） high (mm)
PL183535 140 ≤240 3.7 1.8 34.5 35.5 3.6
PL023759 350 ≤120 3.7 2 36.5 58.5 10
PL022040 95 ≤250 3.7 2 19.5 39.5 3.1
PL212535 95 ≤300 3.7 2.1 24.5 34.5 3.6
PL222624 80 ≤300 3.7 2.2 25.5 23.5 1.8
PL242025 75 ≤240 3.7 2.4 20.5 24.5 1.8
PL243040 230 ≤180 3.7 2.4 30.5 40 4.4
PL243048 280 ≤180 3.7 2.4 30.5 48 6
PL243343 280 ≤120 3.7 2.4 33 42.5 6.4
SY-PL243040 190 ≤180 3.7 2.4 29.5 39.5 5.2
PL252735 185 ≤180 3.7 2.5 27 34.5 4.2
PL253048 300 ≤180 3.7 2.5 30.5 48 6.2
PL253169 450 ≤90 3.7 2.5 30.5 68.5 7.8
PL253820 130 ≤180 3.7 2.5 37.5 19.5 2.2
PL252734 180 ≤180 3.7 2.5 27 33.5 4
PL253343 280 ≤120 3.7 2.5 32.5 42.5 6.4
PL255468 850 ≤60 3.7 2.5 53.5 67.5 18.1
PL265589 1200 ≤60 3.7 2.6 54.5 88.5 24.2
PL264040 330 ≤120 3.7 2.6 39.5 39.5 8.1
PL283048 350 ≤120 3.7 2.8 30 47.5 6.4
PL284045 455 ≤90 3.7 2.8 39.5 44.5 12
PL284050 510 ≤90 3.7 2.8 40 49.5 12.2
PL031549 170 ≤150 3.7 3 14.5 48.5 4.8
PL031015 15 ≤900 3.7 3 9.5 14.5 1
PL031020 35 ≤600 3.7 3 9.5 20.5 1.2
PL031030 60 ≤600 3.7 3 9.5 29.5 1.8
PL031055 130 ≤180 3.7 3 9.5 54.5 4.4
PL031125 55 ≤600 3.7 3 10.5 24.5 1.4
PL031820 65 ≤600 3.7 3 17.5 19.5 2
PL032025 100 ≤300 3.7 3 19.5 24.5 3
PL032030 130 ≤240 3.7 3 19.5 29.5 3
PL032033 140 ≤240 3.7 3 19.5 32.5 3.2
PL032035 150 ≤240 3.7 3 19.5 34.5 3.6
PL032225 110 ≤300 3.7 3 21.5 24.5 3
PL032240 210 ≤240 3.7 3 21.5 39.5 5.4
PL032248 250 ≤180 3.7 3 21.5 47.5 6
PL032324 110 ≤300 3.7 3 22.5 23.5 3
PL032333 170 ≤240 3.7 3 22.5 32.5 3.8
PL032535 200 ≤180 3.7 3 24.5 34.5 4.2
PL032540 245 ≤120 3.7 3 24.5 39.5 6.2
PL033035 230 ≤180 3.7 3 29.5 34.5 4.6
PL033040 300 ≤90 3.7 3 29.5 39.5 6.4
PL033045 350 ≤90 3.7 3 29.5 44.5 7.8
PL033048 380 ≤120 3.7 3 30 47.5 6.8
PL033449 440 ≤90 3.7 3 33.5 48.5 9.4
PL033545 400 ≤90 3.7 3 34.5 44.5 9
PL033759 600 ≤90 3.7 3 36.5 58.5 12.2
PL034050 540 ≤90 3.7 3 40 49.5 10.2
PL034260 690 ≤60 3.7 3 41.5 59.5 15.4
PL035060 850 ≤60 3.7 3 49.5 59.5 18
PL034045 480 ≤90 3.7 3 39.5 44.5 10.1
PL033542 380 ≤90 3.7 3 34.5 41.5 8
PL031035 75 ≤600 3.7 3 9.5 34.5 1.8
PL033440 345 ≤90 3.7 3 33.5 39.5 7.1
PL031218 35 ≤500 3.7 3 11.5 18.5 1.3
PL031220 40 ≤500 3.7 3 11.5 20 1.4
PL033954 570 ≤90 3.7 3 38.5 53.5 12
PL032530 170 ≤120 3.7 3 24.5 29.5 3.6
PL321020 45 ≤600 3.7 3.2 9.5 20.5 1.4
PL321233 90 ≤300 3.7 3.2 11.5 32.5 2.2
PL323450 500 ≤90 3.7 3.2 33.5 49.5 10.2
PL323545 450 ≤90 3.7 3.2 34.5 44.5 9.6
PL323040 340 ≤90 3.7 3.2 29.5 39.5 7.3
PL323759 650 ≤90 3.7 3.2 36.5 58.5 13.7
PL3230160 1500 ≤60 3.7 3.2 29.5 159.5 30.1
PL332230 160 ≤240 3.7 3.3 21.5 29.5 3.8
PL332248 280 ≤120 3.7 3.3 21.5 47.5 6.4
PL332535 230 ≤180 3.7 3.3 24.5 34.5 4.6
PL333434 345 ≤90 3.7 3.3 33.5 33.5 7.2
PL334340 520 ≤90 3.7 3.3 42.5 39.5 10.8
PL335280 1400 ≤60 3.7 3.3 51.5 79.5 27
PL344045 560 ≤90 3.7 3.4 39.5 44.5 12
PL352025 130 ≤240 3.7 3.5 19.5 25 3.2
PL352120 100 ≤300 3.7 3.5 20.5 20.5 3
PL352852 460 ≤90 3.7 3.5 27.5 51.5 8.6
PL353040 380 ≤90 3.7 3.5 29.5 39.5 8.4
PL353440 440 ≤90 3.7 3.5 33.5 39.5 9.6
PL353738 450 ≤90 3.7 3.5 36.5 37.5 11.2
PL353852 650 ≤90 3.7 3.5 37.5 51.5 14
PL355085 1550 ≤45 3.7 3.5 49.5 84.5 30.2
PL354050 660 ≤80 3.7 3.5 39.5 49.5 13.7
PL352525 160 ≤120 3.7 3.5 24.5 24.5 4.1
PL356381 1800 ≤45 3.7 3.5 62.5 80.5 35.2
PL356065 1400 ≤60 3.7 3.5 59.5 64.5 26.9
PL356070 1500 ≤60 3.7 3.5 59.5 69.5 28.9
PL352030 150 ≤180 3.7 3.5 19.5 29.5 4
PL351121 50 ≤380 3.7 3.5 10.5 20.5 1.5
PL362530 220 ≤120 3.7 3.6 24.5 29.5 5.2
PL361225 70 ≤300 3.7 3.6 11.5 24.5 2
PL361223 65 ≤300 3.7 3.6 11.5 22.5 1.9
PL364445 670 ≤60 3.7 3.6 43.5 44.5 13.9
PL363745 550 ≤90 3.7 3.6 36.5 44.5 11.7
PL364460 980 ≤60 3.7 3.6 43.5 59.5 18.6
PL373759 770 ≤60 3.7 3.7 36.5 58.5 15.8
PL381725 115 ≤300 3.7 3.8 16.5 24.5 3
PL383040 420 ≤90 3.7 3.8 29.5 39.5 9
PL384040 590 ≤90 3.7 3.8 39.5 39.5 11.8
PL383450 640 ≤90 3.7 3.8 33.5 49.5 12.1
PL382535 290 ≤180 3.7 3.8 24.5 34.5 6.3
PL384260 980 ≤60 3.7 3.8 41.5 59.5 17.2
PL385068 1300 ≤60 3.7 3.8 49.5 67.5 25.4
PL385689 1800 ≤45 3.7 3.8 55.5 88.5 37.3
PL385689 1800 ≤45 3.7 3.8 55.5 88.5 37.3
PL384045 640 ≤90 3.7 3.8 39.5 44.5 13.4
PL382528 200 ≤180 3.7 3.8 24.5 27.5 5.1
SY-PL396090 2100 ≤45 3.7 3.9 59.5 89.5 41.5
PL041225 80 ≤300 3.7 4 11.5 24.5 2
PL041235 130 ≤300 3.7 4 11.5 34.5 2.8
PL041430 130 ≤300 3.7 4 13.5 29.5 3
PL041730 150 ≤300 3.7 4 16.5 29.5 3.4
PL041936 220 ≤150 3.7 4 18.5 35.5 4.2
PL042025 150 ≤180 3.7 4 19.5 25.5 3.4
PL042030 190 ≤180 3.7 4 19.5 29.5 4
PL042035 230 ≤120 3.7 4 19.5 34.5 5.4
PL042040 280 ≤120 3.7 4 19.5 39.5 6.6
PL042248 390 ≤120 3.7 4 21.5 47.5 7
PL042324 155 ≤240 3.7 4 22.5 23.5 3.6
PL042530 260 ≤120 3.7 4 24.5 29.5 6
PL042540 370 ≤90 3.7 4 24.5 39.5 8.4
PL043030 310 ≤90 3.7 4 29.5 29.5 7.2
PL043035 390 ≤90 3.7 4 29.5 34.5 7.6
PL043040 450 ≤90 3.7 4 29.5 39.5 9.2
PL043745 630 ≤90 3.7 4 36.5 44.5 13.4
PL043759 870 ≤60 3.7 4 36.5 58.5 17
PL044040 620 ≤90 3.7 4 39.5 39.5 12.4
PL044260 1050 ≤60 3.7 4 41.5 59.5 21.2
PL045060 1200 ≤60 3.7 4 49.5 59.5 21.4
PL0430160 2100 ≤60 3.7 4 29.5 155.5 41.4
PL0460113 2900 ≤45 3.7 4 59.5 112.5 51.5
PL042022 120 ≤150 3.7 4 19.5 21.5 3.4
PL041944 290 ≤150 3.7 4 18.5 43.5 6.7
PL041020 50 ≤500 3.7 4 9.5 20.5 1.5
PL045878 1820 ≤60 3.7 4 57.5 77.5 34.4
PL041120 55 ≤500 3.7 4 10.5 20 1.7
PL044443 750 ≤60 3.7 4 43.5 42.5 14.8
PL044445 750 ≤60 3.7 4 43.5 44.5 15.5
PL042033 210 ≤120 3.7 4 19.5 32.5 4.9
PL041222 70 ≤300 3.7 4 11.5 21.5 1.9
PL041733 180 ≤110 3.7 4 16.5 32.5 3
SYPL043759 830 ≤60 3.7 4 36.5 58.5 17.1
SY-P044559 1000 ≤60 3.7 4 44.5 58.5 20.8
SY-PL0470100 2850 ≤45 3.7 4 69.5 99.5 55.3
SY-PL045085 1600 ≤60 3.7 4 49.5 84.5 33.5
SY-PL045878 1700 ≤50 3.7 4 57.5 77.5 35.7
SY-PL045878 1700 ≤50 3.7 4 57.5 77.5 35.7
SY-PL045075 1500 ≤60 3.7 4 49.5 74.5 29.5
PL041619 80 ≤300 3.7 4 15.5 18.5 2.3
PL414050 840 ≤60 3.7 4.1 39.5 49.5 16
PL416781 2450 ≤45 3.7 4.1 66.5 80.5 43.9
PL421516 50 ≤600 3.7 4.2 15 15.5 1.6
PL425165 1460 ≤60 3.7 4.2 50.5 64.5 30.2
PL4273135 4400 ≤45 3.7 4.2 72.5 134.5 81
PL425085 1900 ≤45 3.7 4.2 49.5 84.5 35.1
PL433440 550 ≤90 3.7 4.3 33.5 39.5 11
PL433455 800 ≤60 3.7 4.3 33.5 54.5 15.7
PL451225 95 ≤300 3.7 4.5 11.5 25 2
PL451420 90 ≤300 3.7 4.5 13.5 20.5 2
PL451733 210 ≤240 3.7 4.5 16.5 32.5 4.6
PL452530 300 ≤120 3.7 4.5 24.5 29.5 6.4
PL453045 600 ≤90 3.7 4.5 29.5 44.5 11.8
PL453448 740 ≤90 3.7 4.5 33.5 47 14
PL454040 720 ≤90 3.7 4.5 39.5 39.5 13.8
PL456263 1950 ≤60 3.7 4.5 61.5 62.5 36.8
PL454560 1250 ≤60 3.7 4.5 44.5 59.5 27.7
PL453759 1000 ≤60 3.7 4.5 36.5 58.5 19.3
PL451015 30 ≤900 3.7 4.5 10 14.5 1.3
PL456065 1900 ≤60 3.7 4.5 59.5 64.5 31.6
PL454260 1150 ≤60 3.7 4.5 41.5 59.5 21.6
PL453040 500 ≤90 3.7 4.5 29.5 39.5 10.3
PL451220 75 ≤300 3.7 4.5 11.5 20 2.1
PL451215 40 ≤500 3.7 4.5 11.5 14.5 1.4
PL452025 160 ≤180 3.7 4.5 19.5 24.5 4.2
PL452540 400 ≤90 3.7 4.5 24.5 39.5 8.5
PL455570 1800 ≤60 3.7 4.5 54.5 69.5 34.1
PL451240 90 ≤180 3.7 4.5 11.5 39.5 2.4
PL451240 90 ≤300 3.7 4.5 11.5 39.5 2.3
PL461020 55 ≤600 3.7 4.6 9.5 20.5 1.6
PL462030 225 ≤120 3.7 4.6 19.5 29.5 5.8
PL461549 280 ≤110 3.7 4.6 14.5 48.5 6.5
PL464048 900 ≤60 3.7 4.6 39.5 47.5 17.3
PL471030 90 ≤300 3.7 4.7 9.5 29.5 2.6
PL481222 85 ≤300 3.7 4.8 11.5 21.5 2
PL482030 240 ≤120 3.7 4.8 19.5 29.5 5
PL481556 380 ≤120 3.7 4.8 14.5 55.5 7.7
PL051220 80 ≤300 3.7 5 11.5 20 1.8
PL051223 95 ≤300 3.7 5 11.5 22.5 2.2
PL051235 160 ≤300 3.7 5 11.5 34.5 4.8
PL052020 150 ≤240 3.7 5 19.5 19.5 3.4
PL052030 260 ≤120 3.7 5 19.5 29.5 5.2
PL052248 500 ≤60 3.7 5 21.5 47.5 8.8
PL052324 220 ≤120 3.7 5 22.5 23.5 6
PL052530 330 ≤120 3.7 5 24.5 29.5 7
PL053040 570 ≤90 3.7 5 29.5 39.5 11.6
PL053455 970 ≤60 3.7 5 33.5 54.5 18
PL053759 1150 ≤60 3.7 5 36.5 58.5 18.4
PL054050 1000 ≤60 3.7 5 39.5 49.5 18.8
PL052025 200 ≤120 3.7 5 19.5 24.5 4.1
PL052970 1050 ≤60 3.7 5 28.5 64.5 21
PL053048 720 ≤90 3.7 5 30 47.5 13.7
PL053055 500 ≤80 3.7 5 29.5 34.5 10.2
PL052535 400 ≤90 3.7 5 24.5 34.5 8.5
PL051030 100 ≤200 3.7 5 9.5 29.5 2.7
PL055151 1350 ≤60 3.7 5 50.5 50.5 25.5
PL053646 840 ≤60 3.7 5 35.5 45.5 16.2
SYPL052248 480 ≤60 3.7 5 21.5 47.5 10.2
PL055165 1800 ≤60 3.7 5 50.5 54.5 27.5
SY-PL053759 1050 ≤60 3.7 5 36.5 58.5 21.4
PL055060 1600 ≤60 3.7 5 49.5 59.5 29.5
PL0576100 4250 ≤40 3.7 5 75.5 99.5 75.1
SY-PL052248 480 ≤90 3.7 5 21.5 47.5 10.4
PL525143 1170 ≤60 3.7 5.2 50.5 42.5 21.4
PL533759 1250 ≤60 3.7 5.3 36.5 58.5 21.8
PL544483 2170 ≤45 3.7 5.4 43.5 82.5 41.6
SY-PL547193 3900 ≤45 3.7 5.4 70.5 92.5 70.4
PL5450122 3800 ≤45 3.7 5.4 49.5 121.5 65
PL555143 1250 ≤60 3.7 5.5 50.5 42.5 23.4
PL555689 3200 ≤45 3.7 5.5 55.5 88.5 60.5
PL551230 150 ≤150 3.7 5.5 11.5 29.5 3.6
PL554045 1000 ≤60 3.7 5.5 39.5 44.5 19.3
PL553450 960 ≤60 3.7 5.5 33.5 49.5 18.2
PL061220 100 ≤300 3.7 6 11.5 20 2
PL062030 300 ≤120 3.7 6 19.5 29.5 6.6
PL062540 550 ≤90 3.7 6 24.5 39.5 11.4
PL063040 690 ≤90 3.7 6 29.5 39.5 13.2
PL0637102 2560 ≤45 3.7 6 36.5 101.5 45.8
PL064560 1680 ≤45 3.7 6 44.5 59.5 32.6
PL066065 1800 ≤60 3.7 6 59.5 64.5 44
PL062070 845 ≤60 3.7 6 19.5 69.5 16
PL061430 200 ≤120 3.7 6 13.5 29.5 4.8
PL063040 690 ≤90 3.7 6 29.5 39.5 13.7
PL061245 280 ≤120 3.7 6 11.5 44.5 6.1
PL063444 860 ≤60 3.7 6 33.5 43.5 17.5
SY-PL062020 150 ≤240 3.7 6 19.5 19.5 4.6
SY-PL063443 800 ≤60 3.7 6 33.5 42.5 17.1
PL065068 2250 ≤45 3.7 6 49.5 67.5 40.1
PL065152 1600 ≤60 3.7 6 50.5 51.5 31.2
PL065878 3100 ≤45 3.7 6 57.5 77.5 53.5
SY-PL062240 450 ≤90 3.7 6 21.5 39.5 10.2
Mn-PL066065 1800 ≤90 3.7 6 59.5 64.5 38.9
PL622030 310 ≤120 3.7 6.2 19.5 29.5 6.2
PL633434 700 ≤60 3.7 6.3 33.5 33.5 14.1
PL651225 150 ≤240 3.7 6.5 11.5 25 3.4
PL652030 335 ≤90 3.7 6.5 19.5 29.5 7.6
PL653444 930 ≤60 3.7 6.5 33.5 43.5 17.4
PL651232 190 ≤180 3.7 6.5 11.5 32 3.9
PL653045 880 ≤90 3.7 6.5 29.5 44.5 16.3
PL655279 3000 ≤60 3.7 6.5 51.5 78.5 52.6
PL654765 2100 ≤60 3.7 6.5 46.5 64.5 39
SY-PL653444 880 ≤60 3.7 6.5 33.5 43.5 18.9
PL071922 200 ≤180 3.7 7 18.5 22 4.4
PL075279 3100 ≤45 3.7 7 51.5 78.5 57
PL072035 450 ≤90 3.7 7 19.5 34.5 9.8
PL073450 1200 ≤60 3.7 7 33.5 49.5 23.2
PL742540 740 ≤60 3.7 7.4 24.5 39.5 13.4
PL754050 1560 ≤60 3.7 7.5 39.5 49.5 30
PL753443 1150 ≤60 3.7 7.5 33.5 42.5 21.4
PL752070 980 ≤60 3.7 7.5 19.5 69.5 20.3
PL754765 2400 ≤60 3.7 7.5 46.5 64.5 45
SY-PL753443 1040 ≤60 3.7 7.5 33.5 42.5 21.4
PL082754 1200 ≤60 3.7 8 26.5 53.5 23.6
PL082040 580 ≤90 3.7 8 19.5 39.5 12.2
PL085082 3600 ≤60 3.7 8 49.5 81.5 64.5
PL083450 1420 ≤60 3.7 8 33.5 49.5 26.5
PL085068 3150 ≤60 3.7 8 49.5 67.5 53.5
PL863450 1500 ≤60 3.7 8.6 33.5 49.5 27.8
PL092749 1140 ≤60 3.7 9 26.5 48.5 18.4
PL095263 3300 ≤45 3.7 9 51.5 62.5 60
PL102352 1100 ≤60 3.7 10 22.5 51.5 23.2
PL102540 950 ≤60 3.7 10 24.5 39.5 19.4

Copyright © 2015, Shenzhen Glad Electronics Co., Ltd. All Rights Reserved.
粤ICP05053658   |   Abouts us  |   Contact us
Customer Service: gladeileen@gladelectronics.com
