Lithium iron phosphate battery
The lithium iron phosphate (LiFePO4) battery, also called LFP battery (with "LFP" standing for "lithium ferrophosphate")。

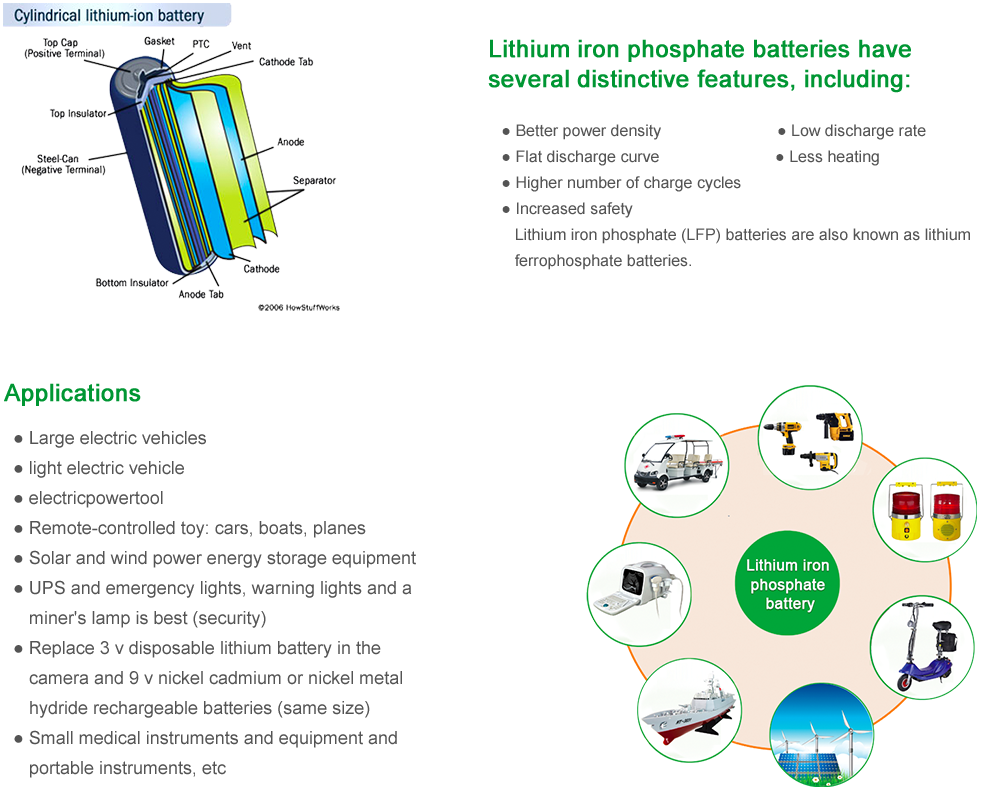

A lithium iron phosphate (LFP) battery is a type of lithium-ion battery that is capable of charging and discharging at high speeds compared to other types of batteries. It is a rechargeable battery consisting of LiFePO4 as its cathode material; hence the name.
Lithium iron phosphate battery specification table
|

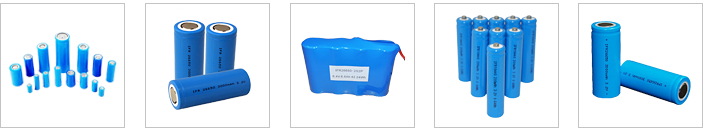

Cylindrical Lithium iron phosphate battery |
|
Type |
Voltage(V) |
Capacity(mAh) |
Size(mm) |
Weight(g) |
|
Typical value |
Min.value |
Dia.*H |
|
IFR10440EC |
3.2 |
220 |
200 |
10.3*44.2 |
8.0 |
|
IFR14500EC |
3.2 |
300 |
280 |
14.2*50.2 |
14.5 |
|
IFR14500EC |
3.2 |
400 |
380 |
14.2*50.2 |
15.5 |
|
IFR14500EC |
3.2 |
500 |
450 |
14.2*50.2 |
16.0 |
|
IFR14500EC |
3.2 |
600 |
550 |
14.2*50.2 |
18.0 |
|
IFR17335EC |
3.2 |
450 |
440 |
16.2*34 |
17.0 |
|
IFR18650EC |
3.2 |
1500 |
1450 |
18.2*65 |
42.5 |
|
IFR18650PC |
3.2 |
1150 |
1100 |
18.2*65 |
42.0 |
|
IFR22650EC |
3.2 |
2050 |
2000 |
22.2*65 |
62.0 |
|
IFR22650PC |
3.2 |
1550 |
1500 |
22.2*65 |
62.0 |
|
IFR26650EC |
3.2 |
3300 |
3200 |
26.2*65 |
82.0 |
|
IFR26650PC |
3.2 |
2350 |
2300 |
26.2*65 |
78.0 |
|
IFR32650EC |
3.2 |
5000 |
4950 |
32.2*70 |
145.0 |
|
IFR421200EC |
3.2 |
12000 |
11500 |
42.2*120.2 |
390.0 |
|
Flexible package Lithium iron phosphate battery |
|
Type |
Voltage(V) |
Capacity(mAh) |
Size(mm) |
Weight(g) |
|
Typical value |
Min.value |
T*W*L |
|
IFP604070EC |
3.2 |
1050 |
1000 |
6.2*40.5*70.5 |
28.0 |
|
IFP604067EC |
3.2 |
1000 |
950 |
6.2*40.5*67.5 |
28.0 |
|
IFP6558150EC |
3.2 |
4000 |
3950 |
6.7*58.5*150.5 |
102.0 |
|
IFP50125210EC |
3.2 |
9000 |
8500 |
5.2*125.5*212 |
230.0 |
|
IFP8080225EC |
3.2 |
10500 |
10000 |
8.5*81*227 |
255.0 |
|
IF8078230PEC |
3.2 |
10500 |
10000 |
8.5*79*232 |
255.0 |
|
IFP9078230EC |
3.2 |
12500 |
12000 |
9.5*79*232 |
290.0 |
|
IFP55180210EC |
3.2 |
15500 |
15000 |
5.7*180.5*211 |
390.0 |
|
IFP65150225EC |
3.2 |
15500 |
15000 |
6.7*152*227 |
390.0 |
|
IFP80150225EC |
3.2 |
20500 |
20000 |
8.5*152*227 |
545.0 |
|
IFP95220160EC |
3.2 |
20000 |
19500 |
9.7*221*162 |
540.0 |
|
IFP90300270PC |
3.2 |
50000 |
49500 |
9*300.5*270.5 |
1450.0 |
|
IFP6042125PC |
3.2 |
2000 |
1950 |
6.5*42.5*125.5 |
61.0 |
|
IFP9567220PC |
3.2 |
6500 |
6000 |
9.8*67*222 |
221.0 |
|
Lithium iron phosphate battery pack |
|
Type |
Length(mm) |
Width(mm) |
Height(mm) |
Weight(Kg) |
|
9.6V 2Ah |
66 |
28 |
70 |
0.2 |
|
12V 12Ah |
182 |
80 |
168 |
2.1 |
|
12V 15Ah |
185 |
77 |
168 |
2.4 |
|
12V 100Ah |
330 |
170 |
220 |
15.5 |
|
24V 10Ah |
240 |
80 |
120 |
3.9 |
|
24V 18Ah |
230 |
165 |
77 |
4.7 |
|
36V 8Ah |
408 |
108 |
75 |
4.2 |
|
36V 10Ah |
358 |
148 |
68 |
4.6 |
|
36V 100Ah |
560 |
450 |
195 |
65.0 |
|
48V 12Ah |
212 |
165 |
110 |
5.8 |
|
48V 20Ah |
235 |
162 |
195 |
10.3 |
|
48V 30Ah |
325 |
260 |
180 |
16.5 |
|
48V 50Ah |
196 |
165 |
178 |
27.6 |
|
72V 25Ah |
350 |
180 |
230 |
23.0 |
|
72V 140Ah |
500 |
270 |
370 |
80.0 |
|
72V 105Ah |
636.5 |
398.5 |
236 |
116.0 |
|
76V 105Ah |
635 |
445 |
260 |
115.0 |
|
144V 90Ah |
1007 |
515 |
305 |
168.0 |
